Standard General-Purpose Machine
Multiple Setups & Compromised Cycle Times
- 3 to 4 sequential fixture setups for multi-face parts
- Average cycle time of 18 to 22 minutes
- Setup errors and human clamping variance
CYCLE TIME
~18.5 MIN
SETUPS
3-4 PASSES
Special Purpose Machine Manufacturer
Special Purpose Machine Manufacturer for Metal Cutting & Industrial Applications
Master Engineering Solution is a Kolhapur-based design and manufacturing company with 25 years of experience in metal cutting special purpose machines. We develop application-focused solutions for milling, drilling, reaming, tapping, boring, turning, facing, grinding and other dedicated machining requirements, along with engineered machine components and assemblies.
Duplex & HMC Milling2-Way & 4-Way Multi-Drilling250 Bar Ring ExpandingTwo-Speed Spindle Gearboxes
Dedicated Machine Concepts Designed Around Customer Operation & Drawing
SPM KINEMATICS VIEWPORT
PROJECT SPEC:Duplex Milling & Boring Center
MAX CUTTER
Ø500 mm
HYDRAULICS
250 BAR
SPINDLE NOSE
BT-40 / BT-50
GEAR REDUCTION
1:4 RATIO
Ø500 mm
Duplex Milling
Ø500 mm cutter
250 bar
Ring Expanding
BWSC & PCCP pipe ring application
1:4
Two-Speed Gearboxes
HMC and VTL gearbox solutions
Ø350–2000 mm
Ring Diameter
Hydraulic ring expanding range
DUPLEX MILLING: Ø500 MM CUTTERS
HYDRAULIC RING EXPANDER: 250 BAR
TWO-SPEED GEARBOXES FOR HMC & VTL
MULTI-DRILLING & TAPPING: 2-WAY & 4-WAY
CNC BORING: HORIZONTAL & VERTICAL
U-DRILLING: Ø16 MM TO Ø70 MM
DUPLEX MILLING: Ø500 MM CUTTERS
HYDRAULIC RING EXPANDER: 250 BAR
TWO-SPEED GEARBOXES FOR HMC & VTL
MULTI-DRILLING & TAPPING: 2-WAY & 4-WAY
CNC BORING: HORIZONTAL & VERTICAL
U-DRILLING: Ø16 MM TO Ø70 MM
DUPLEX MILLING: Ø500 MM CUTTERS
HYDRAULIC RING EXPANDER: 250 BAR
TWO-SPEED GEARBOXES FOR HMC & VTL
MULTI-DRILLING & TAPPING: 2-WAY & 4-WAY
CNC BORING: HORIZONTAL & VERTICAL
U-DRILLING: Ø16 MM TO Ø70 MM
ENGINEERING APPROACH
Engineering Solutions for Dedicated Manufacturing Operations
Every production requirement is different. Master Engineering focuses on understanding the component, required operation and machine specification before developing a suitable engineering solution. The company's completed project portfolio includes CNC and hydraulic special purpose machines as well as purpose-built assemblies and machine accessories.
INPUT ANALYSISSTAGE 01
1. Component & Operation Study
We analyze the component drawing, material characteristics, machining sequence, and interface dimensions before defining machine kinematics.
SPECIFICATION-FIRST
MECHANICAL DESIGNSTAGE 02
2. Dedicated Machine Kinematics
Machines are built around the exact workpiece—rigid cast iron beds, dedicated spindle orientations, and cycle-optimized fixture clamping.
SPECIFICATION-FIRST
SYSTEMS INTEGRATIONSTAGE 03
3. Precision Actuation & Control
Integration of hydraulic clamping, CNC servo feeds, heavy-duty gearboxes, and automated process synchronization.
SPECIFICATION-FIRST
VERIFIED DELIVERYSTAGE 04
4. Shopfloor Commissioning
Practical engineering validated against required tolerances and cycle times, delivering long-term production reliability.
SPECIFICATION-FIRST
FOUNDER PHILOSOPHY • REQUIREMENT-DRIVEN ENGINEERING
“Our approach is simple: understand the customer's operation first and engineer the machine around that need. We aim to provide practical solutions for specific manufacturing challenges and to work closely with customers from requirement discussion to the final engineering concept.”
A useful engineering solution should be clear in purpose, practical to operate and aligned with the required specification. Master Engineering positions itself as a requirement-driven engineering company rather than a catalogue-only machine supplier.
Application-First Analysis
Process-Specific Geometry
Direct Technical Dialogue
Verified Specifications Only
ENGINEERING EFFICIENCY MATRIX
Standard Machine vs. Master Engineering SPM
Hover, click or drag either side of the interactive matrix to reveal machinery and compare standard catalogue machines against Master Engineering purpose-built special purpose machines.
Master Engineering Dedicated SPM
1-Pass Machining & 75% Cycle Reduction
- Twin-spindle duplex face milling in a single pass
- Optimized cycle time of 4.5 minutes
- Dedicated hydraulic clamping for repeatability
CYCLE TIME
4.5 MIN
SETUP
1 CLAMP
01. COMPONENT-SPECIFIC KINEMATICSNo generic compromises. Axis travel, spindle spacing, and clamping stroke fit your exact part casting.
02. 75% CYCLE TIME ADVANTAGEParallel twin milling and multi-station drilling eliminate non-productive tool change and positioning overhead.
03. HIGH OPERATOR SAFETY & ERGONOMICSPneumatic/hydraulic part clamping with auto-presence sensors protects tools from dry fires and crashes.
Our Main Machine & Product Range
Special Purpose Machines, process equipment, and custom machine tool components engineered around specific manufacturing operations and component geometries.
Special Purpose Machines
Dual-Face Milling & Surfacing

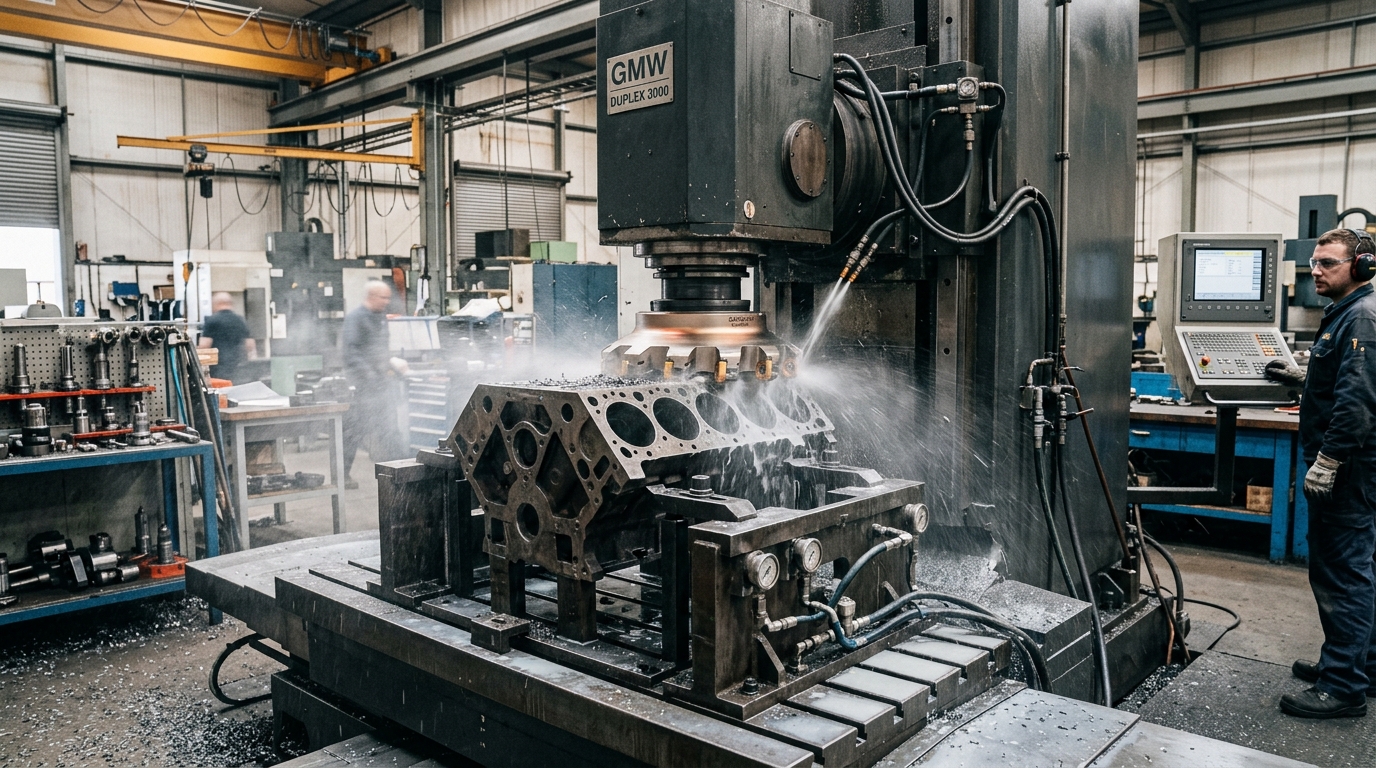

Duplex Milling Machine
Twin-spindle face milling with Ø500 mm cutters for cylinder blocks and housings
CUTTER / DRESSER:Ø500 mm Face Milling Cutter
TARGET WORKPIECES:Engine cylinder block, clutch housing, transmission case
Special Purpose Machines
O.D. Grinding & Shoulder Facing
CNC Grinding Machine
High-precision O.D. cylindrical grinding and facing with Ø100 mm to Ø600 mm wheel range
WHEEL CAPACITY:Ø100 mm to Ø600 mm Grinding Wheel Range
TARGET WORKPIECES:O.D. grinding and facing
Special Purpose Machines
Milling, Drilling, Tapping & Boring
HMC Special Purpose Machine
Horizontal machining center SPM for multi-operation milling, drilling, tapping and boring
SPINDLE NOSE:BT-40 / BT-50 Spindle Nose
TARGET WORKPIECES:Milling, drilling, tapping and boring
Special Purpose Machines
Simultaneous Multi-Hole Drilling & Tapping
Multi-Drilling & Tapping Milling Machine
Multi-spindle 2-way and 4-way stations covering Ø3 mm to Ø22 mm hole patterns
DRILL CAPACITY:Ø3 mm to Ø22 mm Hole Diameter
TARGET WORKPIECES:Engine cylinder blocks, clutch housings, automotive brackets
Process Equipment
Hydraulic Radial Ring Calibration & Sizing

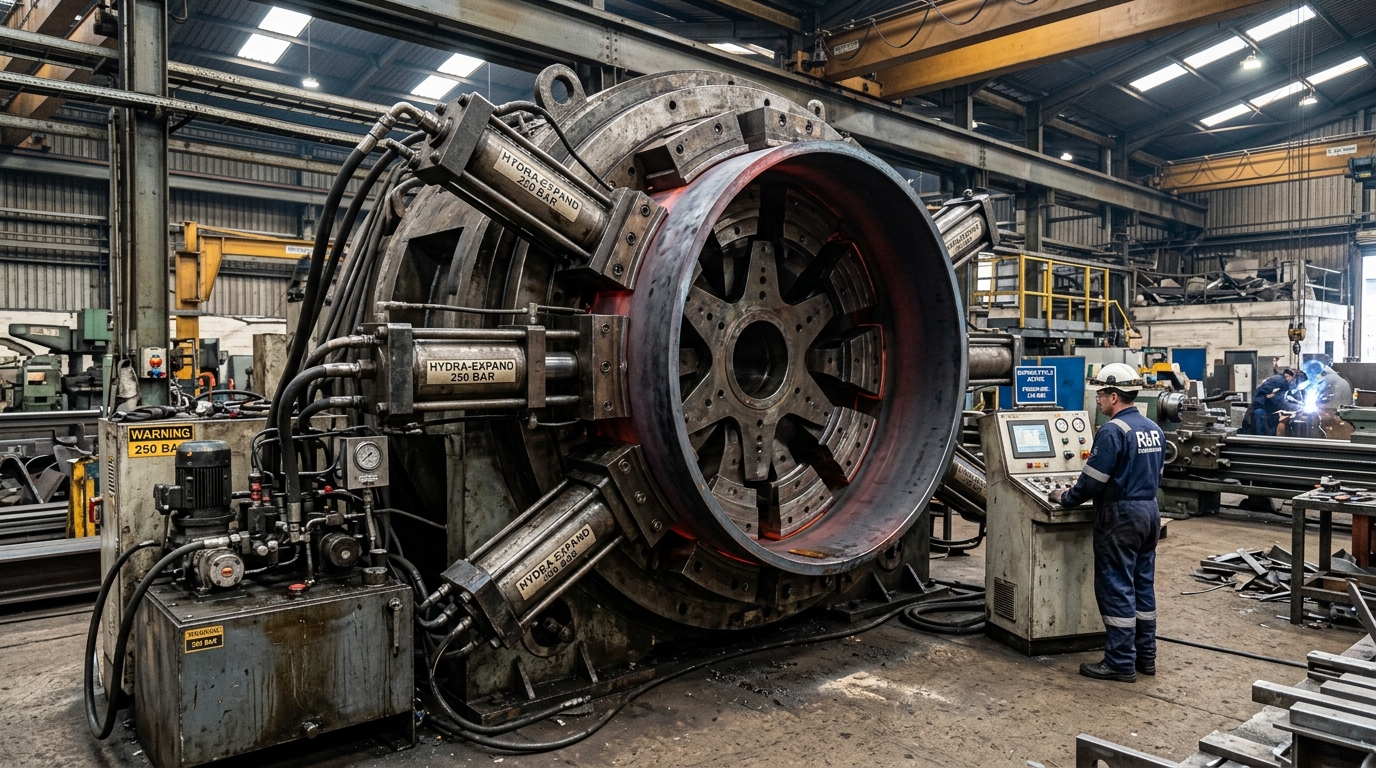

Hydraulic Ring Expanding Machine
Heavy-duty 250 bar hydraulic calibration for Ø350 mm to Ø2000 mm pipe spigot & socket rings
DIAMETER RANGE:Ø350 mm to Ø2000 mm Ring Diameter
PRESSURE / CYCLE:250 bar Working Hydraulic Pressure
TARGET WORKPIECES:BWSC & PCCP pipe rings, heavy structural casing rings
Special Purpose Machines
Rough & Fine Cylinder Boring
Special Purpose Boring Machine
Vertical hydraulic and horizontal CNC servo boring for cylinder blocks and housings
TARGET WORKPIECES:Engine cylinder blocks, compressor bodies, bearing housings
Special Purpose Machines
Indexable U-Drilling in Solid Stock
U-Drilling Machine
High-thrust deep hole drilling with Ø16 mm to Ø70 mm indexable U-drill capacity
DRILL CAPACITY:Ø16 mm to Ø70 mm U-Drill Range
TARGET WORKPIECES:C.I. & steel
Machine Components & Accessories
High-Torque / High-Speed Spindle Transmission

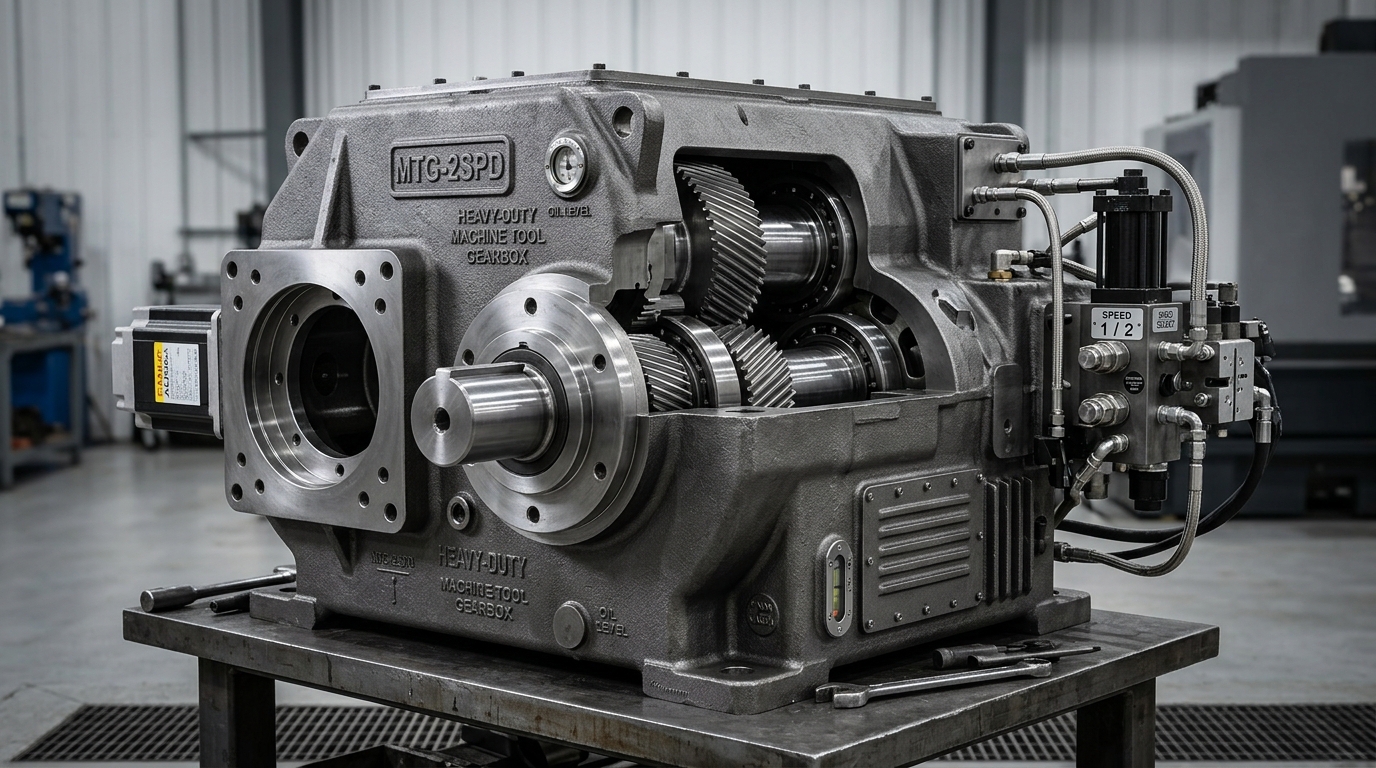

Two-Speed Gearbox for HMC
15 kW horizontal machine tool spindle gearbox with 1:4 reduction ratio and hydraulic shifting
MOTOR / RATIO:15 kW Servo Motor Interface (1:4 Reduction Ratio (Low Range / High Range))
TARGET WORKPIECES:Horizontal Machining Centers (HMC) requiring dual torque ranges
Machine Components & Accessories
Heavy Table Turning & Facing Drive
Two-Speed Gearbox for VTL
44 kW heavy-duty vertical transmission for Ø1200 mm chuck turning and facing
MOTOR / RATIO:44 kW High-Power Servo Motor Interface (1:4 Heavy Reduction Ratio)
TARGET WORKPIECES:Vertical Turret Lathes (VTL) with Ø1200 mm chuck tables
Machine Components & Accessories
Workpiece Center Clamping & Axial Support
Special CNC Lathe Tailstock
Hydraulic-cylinder-operated Ø60 mm quill with 150 mm stroke and hardened bed
QUILL STROKE:150 mm Quill Stroke (MT2 Inner Morse Taper)
TARGET WORKPIECES:CNC lathe shaft turning
Machine Components & Accessories
Drawbar Actuation & Tool Clamping
Special Hydraulic Cylinders (BT-40 & BT-50)
Spindle tool clamping & declamping cylinders: BT-40 (100mm bore) & BT-50 (190mm bore)
PRESSURE / CYCLE:Standard machine tool hydraulic supply (70–140 bar)
BORE / STROKE:BT-40: 100 mm bore / 12 mm stroke | BT-50: 190 mm bore / 15 mm adj. stroke
TARGET WORKPIECES:BT-40 / BT-50 machine tool spindle heads
Machine Components & Accessories
Grinding Wheel Profile Shaping & Dressing
Profile Shape Grinding Dressing Spindle Unit
Diamond roller dresser spindle with Ø110 × 35 mm roll, 3000 RPM and quick-change mandrel
CUTTER / DRESSER:Ø110 × 35 mm Diamond Roller Dresser
TARGET WORKPIECES:Grinding wheel profile shaping & dressing
Process Equipment
Automatic & Manual Cylindrical Welding Job Rotation
Self-Centering Welding Rotator
1-ton capacity auto/manual self-centering rotator for cylindrical shells from Ø350 mm to Ø1500 mm
CUTTER / DRESSER:Ø400 mm Polyurethane-Coated Wheels
DIAMETER RANGE:Ø350 mm to Ø1500 mm Shell Diameter
LOAD CAPACITY:1-Ton Working Load Capacity
TARGET WORKPIECES:Pressure vessels, pipe fabrication, boiler shells, cylindrical tanks
Need a customer-specific machine concept? All parameters are engineered to match component drawings.
CUSTOM ENGINEERING SCOPE →TAILORED MACHINERY SOLUTIONS
Custom Engineering
When a standard machine does not match the required operation, Master Engineering can develop a customer-specific machine or assembly as per the requirement and specification. Share the component drawing, operation details and production requirement for a technical discussion.
OPERATIONS WE HAVE WORKED AROUND
7 CORE DOMAINS01
Milling and Facing
Single and duplex face milling with cutters up to Ø500mm for automotive blocks and housings.
02
Drilling and Tapping
Multi-spindle 2-way and 4-way hole drilling (Ø3mm to Ø22mm) and heavy U-drilling (up to Ø70mm).
03
Precision Boring
Vertical hydraulic and horizontal CNC servo boring machines for deep cylinder bores.
04
O.D. Grinding & Dressing
External cylindrical grinding systems with high-speed diamond roller profile dressing spindles.
05
Pipe Ring Expanding
250 bar hydraulic calibration machines for BWSC and PCCP pipe rings up to Ø2000mm.
06
Turning & Facing Transmission
44 kW and 15 kW two-speed machine tool gearboxes for VTL (Ø1200mm chucks) and HMC spindles.
07
Welding Job Rotation
Self-centering 1-ton rotators handling cylindrical vessel shells from Ø350mm to Ø1500mm.
TECHNICAL INPUT CHECKLIST
What to Send for an Initial Discussion
Provide the following engineering inputs so our technical team can analyze your application and propose a dedicated machine concept:
01
Component Drawing / Sample2D / 3D CAD drawing, material specification (e.g. Cast Iron, Alloy Steel), and raw blank dimensions.
02
Required Machining OperationMilling, drilling, tapping, boring, grinding, ring expanding, or heavy turning transmission.
03
Critical Dimensions & TolerancesTarget surface finish, flatness/parallelism requirements, hole pitch accuracy, or diametral limits.
04
Existing Machine InterfaceMounting pad details, chuck size (e.g. Ø1200mm VTL), spindle taper, or hydraulic supply specs if designing an assembly.
05
Production & Process RequirementsTarget cycle time, batch volume, automated vs manual loading preference, and control system requirements.
• Attachment & Sub-Assembly Scope:If your requirement is for an attachment or assembly (e.g. VTL gearbox or lathe tailstock), include existing machine interface dimensions for direct CAD integration.
Featured Machine Projects & Manufactured Equipment
Showcasing Master Engineering's completed special purpose machines, dedicated machining systems, and industrial components. All displayed data represents actual supplied machines with verified specifications.
VERIFIED SPECIFICATIONS ONLY
Actual supplied machinery. No unconfirmed cycle times or synthetic marketing claims.
Milling / Automotive
Twin-Face Simultaneous Milling
Duplex Milling Machine Project
VERIFIED SPECIFICATIONS:Ø500 mm cutter • Hydraulic & CNC type • Cylinder block & clutch housing
Process Equipment / Heavy Pipe
Radial Hydraulic Calibration
BWSC & PCCP Pipe Ring Expanding Machine
VERIFIED SPECIFICATIONS:Ø350–2000 mm diameter • 250 bar working pressure • 5-min cycle
Transmission / Machine Tool
Vertical Heavy Turret Drive
Two-Speed Gearbox for VTL Turning
VERIFIED SPECIFICATIONS:44 kW servo motor • 1:4 reduction ratio • Ø1200 mm chuck project • 3000 rpm
SPM / Multi-Axis
Milling, Drilling, Tapping, Boring
HMC Multi-Operation Special Purpose Machine
VERIFIED SPECIFICATIONS:BT-40 / BT-50 spindle nose • Single or double spindle • Custom CNC
Transmission / Spindle Drive
Horizontal Spindle Speed Reduction
Two-Speed Gearbox for HMC Spindle
VERIFIED SPECIFICATIONS:15 kW servo motor • 1:4 ratio • Hydraulic shifting • Hollow input
SPM / High-Throughput
Simultaneous Multi-Station Machining
Multi-Way Drilling & Tapping Milling Machine
VERIFIED SPECIFICATIONS:Ø3 mm to Ø22 mm drill range • 2-way & 4-way type • Cylinder block
Engineering Integrity & Transparency:The project gallery represents actual machine and component work supplied by Master Engineering. Only verified specifications are shown; we maintain strict engineering transparency without unconfirmed claims.
TECHNICAL ENQUIRY • DIRECT CONSULTATION
Discuss Your Machine or Engineering Requirement
Share your component, operation and technical requirement with Master Engineering. The enquiry will be reviewed by our engineering team to evaluate whether the need is for a complete special purpose machine, machining system, gearbox, hydraulic unit or machine component.
WHAT INFORMATION HELPS US UNDERSTAND
Where available, share the component drawing, material, required operation, important dimensions, existing machine interface and any confirmed process specification. This allows the initial discussion to remain focused and technical.
