Master Engineering Solution / Engineering Products
Beyond complete special purpose machines, Master Engineering Solution develops purpose-built gearboxes, hydraulic units, spindle systems, tailstock assemblies and process equipment for specific industrial applications.
Discuss Your Requirement

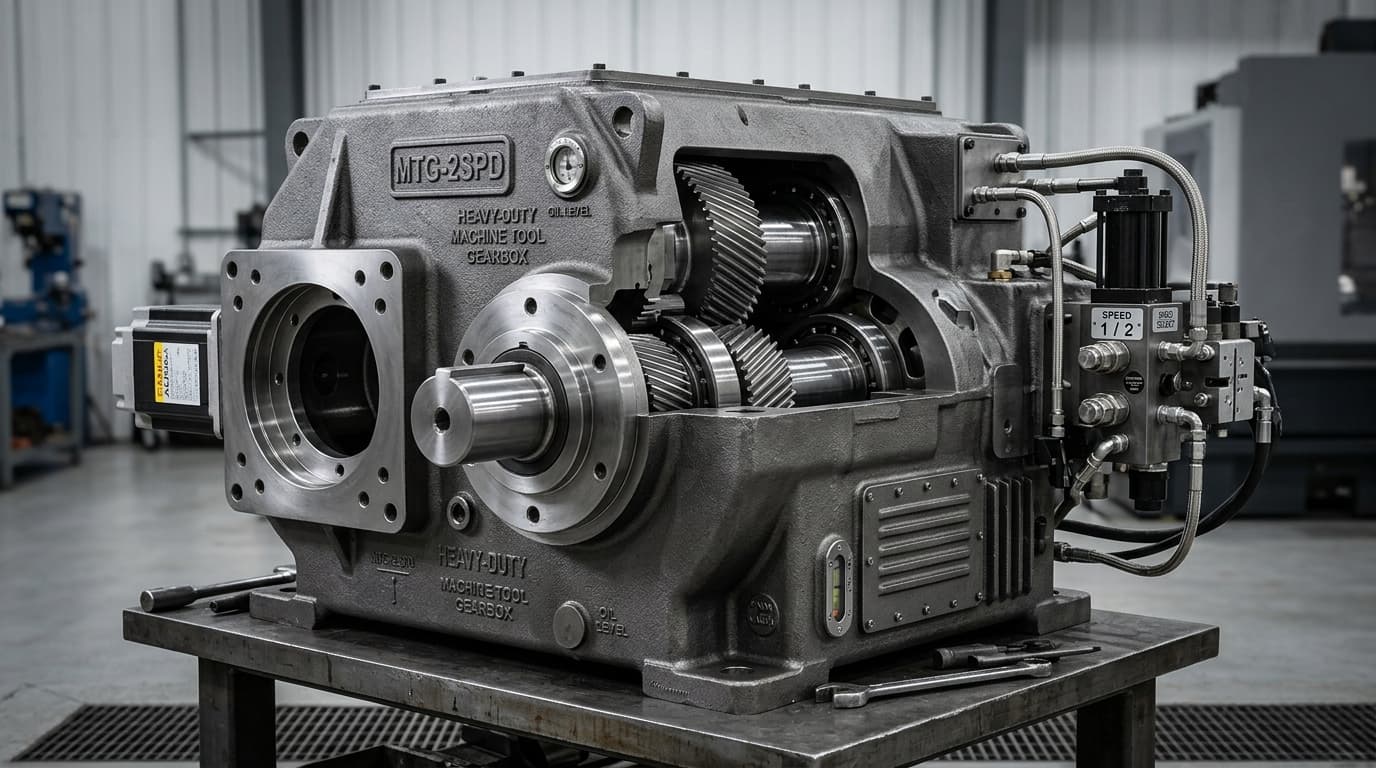

Compact, high-rigidity two-speed machine tool transmission designed for horizontal machining centers. Provides high torque at low speeds for heavy roughing and direct drive up to 3000 RPM for fine finishing.
Horizontal mounting; 15 kW servo motor; 1:4 ratio; hydraulic shifting; hollow input / solid output; 3000 rpm.
High-tonnage vertical transmission unit engineered specifically for Vertical Turret Lathes (VTL). Delivers extreme cutting torque to Ø1200 mm chucks during heavy facing and rough turning passes.
Vertical mounting; Ø1200 mm chuck project; 44 kW servo motor; 1:4 ratio; separate oil circulation; max 3000 rpm.
Specialized hydraulic unclamp cylinders engineered for BT-40 and BT-50 machine tool spindles to actuate internal drawbars during automatic or manual tool changing.
BT-40: 100 mm bore / 12 mm stroke. BT-50: 190 mm bore / 15 mm adjustable stroke.
Purpose-built CNC lathe tailstock assembly featuring hydraulic quill extension for rapid workpiece centering and consistent axial thrust in production lathe environments.
Hydraulic-operated quill; 150 mm stroke; Ø60 mm quill; MT2 inner diameter; 200 mm manual stroke; hardened & ground bed.
High-precision rotary dressing spindle accessory used on surface and cylindrical grinding machines to form and true complex wheel profiles with diamond rollers.
Diamond roller dresser; belt drive; Ø110 × 35 mm dresser; Ø52 mm location; 3000 rpm; quick-change mandrel.
Dedicated process machine designed specifically for expanding and sizing spigot and socket rings used in BWSC and PCCP concrete/steel pressure pipelines to strict circular tolerances.
BWSC & PCCP pipe ring application; Ø350–2000 mm range; 8–12 mm thick; 250 bar pressure; 5-min cycle.
Self-centering welding rotator designed to support and rotate cylindrical shells, pipe spools, and tanks during circumferential welding, cladding, and inspection.
Self-centering auto/manual; Ø400 mm PU-coated wheels; 1-ton capacity; shell Ø350 mm to Ø1500 mm.
If the required assembly does not match a standard configuration, share the machine interface, drawing, load or operation details and required movement. The engineering team can review whether a custom gearbox, hydraulic unit, spindle assembly, tailstock or supporting machine component can be developed.
